Roți dintate, cremaliere, grupuri conice

Toothed wheels, rack and conical groups

Roti dintate, cremaliere, grupuri conice - SELF TRUST Romania

Looking for another product?

We offer a wide range of gears and racks suitable for each individual application.

Gears are essential in the precise transfer of power and motion in a number of applications. With various shapes, sizes and materials, they provide efficient transmission solutions for various machines and equipment. We have a variety of sprockets, from simple, general purpose to specialized, to meet the specific requirements of each project.

Racks are innovative tools that convert rotary motion into precise linear displacement, essential in automation, machine building and other engineering applications. They provide a reliable solution for precise motion transformation, being adapted for various industrial applications.

Whether you are looking for gears for precise transmissions or racks for high precision engineering applications, we are here to provide you with quality products and the right technical solutions for your projects. Our comprehensive range gives you the opportunity to choose the right equipment to meet your specific requirements of your business.

We are here to help you make the right choice! With a team of experts ready to provide you with personalized advice and support, we are dedicated to being your source of gears and racks for your industrial applications.

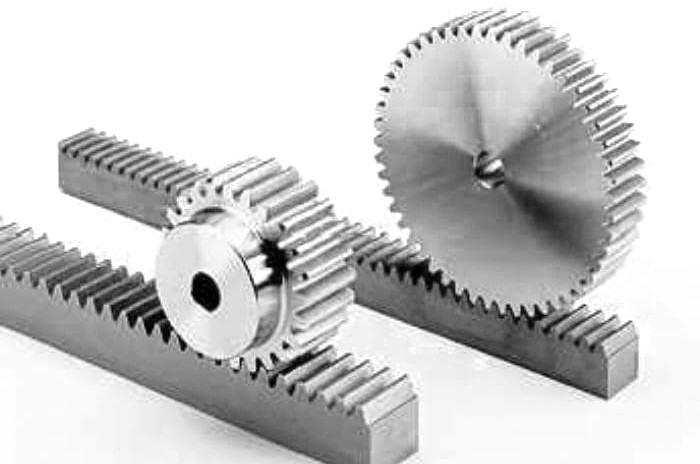

Toothed wheels

We offer you a wide range of cylindrical or conical gears, with straight or helical teeth. Material: C45 steel, stainless steel or plastic material.

Please request additional product information from our consultants!

Roata dintata cu butuc lateral - SELF TRUST

Gear wheels with side hub

Toothed wheels with side hub - MODULE 1

h = 15 mm

H = 25 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

12

14

12

9

5 Up to:

100

102

100

60

12

Toothed wheels with side hub - MODULE 1,5

h = 17 mm

H = 30 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

12 21,0

18,0

14

8 Up to:

72 111,0

108,0

80

20

Gear wheels with side hub - MODULE 2

h = 20 mm

H = 35 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

12

28

24

18

10 Up to:

72

148

144

80

20

Gear wheels with side hub - MODULE 2.5

h = 25 mm

H = 40 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

12

35

30

22

10 Up to:

70

180

175

100

20

Toothed wheels with side hub - MODULE 3

h = 30 mm

H = 50 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

12

42

36

25

12 Up to:

65

201

195

100

20

Toothed wheels with side hub - MODULE 4

h = 40 mm

H = 60 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

12

56

48

35

14 Up to:

65

268

260

100

25

Toothed wheels with side hub - MODULE 5

h = 50 mm

H = 75 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

12

70

60

45

16 Up to:

60

310

300

120

30

Gear wheels with side hub - MODULE 6

h = 60 mm

H = 80 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

12

84

72

54

20 Up to:

40

252

240

120

25

Toothed wheels with side hub - MODULE 8

h = 80 mm

H = 110 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

12

112

96

56

20 Up to:

30

256

240

190

3

Toothed wheels without side hub

Gear wheels without side hub - MODULE 1

h = 15 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

60

62

60 -

12 Up to:

127

129

127 -

12

Toothed wheels without side hub - MODULE 1,5

h = 17 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

72

111

108 -

20 Up to:

127 193,5

190,5

-

20

Roti dintate fara butuc lateral Modul 1.5

Gear wheels without side hub - MODULE 2

h = 20 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

72

148

144 -

20 Up to:

127

258

254 -

20

Gear wheels without side hub - MODULE 2.5

h = 25 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

65 167,5

162,5

-

20 Up to:

127 322,5

317,5

-

25

Roti dintate fara butuc lateral Modul 2.5

Toothed wheels without side hub - MODULE 3

h = 30 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

Up to:

48

150

144 -

25 Up to:

127

387

381 -

30

Gear wheels without side hub - MODULE 4

h = 40 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

38

160

152 -

25 Up to:

114

464

456 -

25

Roti dintate fara butuc lateral - SELF TRUST

Toothed wheels without side hub - MODULE 5

h = 50 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

32

170

160 -

25 Up to:

114

580

570 -

30

Gear wheels without side hub - MODULE 6

h = 60 mm

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

Z

De

Dp

d

D

From:

30

192

180 -

25 Up to:

40

252

240 -

25

Racking

Find in our product range straight toothed racks in different sizes, made of C45 steel or stainless steel.

Please request additional product information from our consultants!

Racking - MODULE 1

hp = 14 mm

he x S = 15 x 15 mm

pas = 3,1416

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

159 499,51

319 1002,17

637 2001,20

955 3000,23

Racking - MODULE 1.5

hp = 15,5 mm

he x S = 17 x 17 mm

pas = 4,7124

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

106 499,51

213 1003,74

425 2002,77

637 3001,80

Racking - MODULE 2

hp = 18 mm

he x S = 20 x 20 mm

pas = 6,2832

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

80 502,66

160 1005,31

319 2004,34

478 3003,37

Racking - MODULE 2.5

hp = 22,5 mm

he x S = 25 x 25 mm

pas = 7,8540

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

64 502,66

128 1005,31

255 2002,77

382 3000,23

Racking - MODULE 3

hp = 27 mm

he x S = 30 x 30 mm

pas = 9,4248

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

53 499,51

107 1008,45

213 2007,48

319 3006,51

Racking - MODULE 4

hp = 18 mm

he x S = 22 x 22 mm

pas = 12,5664

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

40 502,66

80 1005,31

160 2010,62

239 3003,37

Racking - MODULE 4

hp = 21 mm

he x S = 25 x 25 mm

pas = 12,5664

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

40 502,66

80 1005,31

160 2010,62

239 3003,37

Racking - MODULE 4

hp = 26 mm

he x S = 30 x 30 mm

pas = 12,5664

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

40 502,66

80 1005,31

160 2010,62

239 3003,37

Racking - MODULE 4

hp = 36 mm

he x S = 40 x 40 mm

pas = 12,5664

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

40 502,66

80 1005,31

160 2010,62

239 3003,37

Racking - MODULE 5

hp = 45 mm

he x S = 50 x 50 mm

pas = 15,7080

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

32 502,66

64 1005,31

128 2010,62

191 3000,23

Racking - MODULE 6

hp = 54 mm

he x S = 60 x 60 mm

pas = 18,8496

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

27 508,94

54 1017,88

107 2016,91

-

Racking - MODULE 8

hp = 72 mm

he x S = 80 x 80 mm

pas = 25,1328

Pressure angle 20°
Material C45E
EN 10083-1

Dimensions (mm):

L

Z

Lr

500 1000

2000

3000

20 502,66

40 1005,31

80 2010,62

-

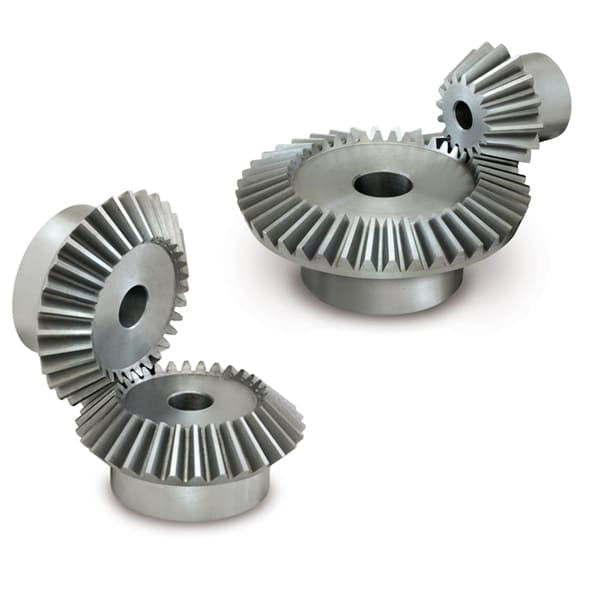

Conical groups

We provide tapered groups with straight or helical teeth that aim not only to reduce movement (defined by the transmission ratio), but also the gap of 90 degrees between the axes of rotation.

Please request additional product information from our consultants!

We also offer other types of gears, racks and bevel groups to meet your specific needs.

With a wide range of gears and racks, we are dedicated to providing everything that is essential to keep your equipment running at its best. The diversity and adaptability of our offer make us the trusted partner for all your gear and rack needs, offering customized solutions that are perfect to support the performance and efficiency of industrial equipment.

For other details or special products we are here to help you!

Contact

Iași:

vanzari@selftrust.ro

+40 723 215 071

+40 728 082 479

București:

vanzari2@selftrust.ro

+40 799 934 213

+40 728 082 493
